• Medium platinum front/rear bumpers
• Grille w/Ford oval
• Sealed-beam halogen headlights
• Aerotype manual mirrors
• Solar tinted glass
• Interval windshield wipers
• 60/40 hinged swing-out side cargo door

• 15-passenger seating
• Graphite vinyl high-back front bucket seats
• (3) 3-passenger graphite vinyl intermediate bench seats
• (1) 4-passenger graphite vinyl rear bench seat
• Front inboard armrest
• Full-length black vinyl floor covering
• Black plastic stepwell pads
• Tilt steering wheel
• Front/rear high capacity air conditioning w/auxiliary heater, overhead ducts
• Electronic AM/FM stereo radio-inc: digital clock, (4) speakers
• Medium flint instrument panel-inc: 12-volt pwr point, tachometer
• Medium flint plastic front door trim panels
• Medium flint side/rear quarter trim panels
• Polypropylene side/rear door trim
• Black cowl side trim panels
• Day/night rearview mirror
• Medium flint coat hooks
• Medium flint full-length acoustical cloth headliner
• Medium flint cloth sun visors
• Dual A-pillar grab handles
• Front dome light
• Rear 12-volt pwr point
• Rear cargo light
• Courtesy light switches for all doors

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags
• Front height adjustable 3-point safety belts
• Rear outboard 3-point safety belts
• Electric horn

5.4L EFI OHC V8 ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Steel Wheels
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• Bucket Seats
• Adjustable Steering Wheel
• A/C
• Rear A/C
• AM/FM Stereo
• Driver Air Bag
• Passenger Air Bag

• Vehicle
• Rear Door Type: Panel
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 29.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4600
• Gross Axle Wt Rating - Rear (lbs): 6340
• Curb Weight - Front (lbs): 2932
• Curb Weight - Rear (lbs): 3254
• Gross Vehicle Weight Rating Cap (lbs): 9100
• Gross Combined Wt Rating (lbs): 12,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5,700
• Dead Weight Hitch - Max Tongue Wt. (lbs): 570
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3550
• Spring Capacity - Rear (lbs): 6195
• Axle Type - Front: Twin-I-Beam
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 6340
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.9 x 2.36
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Spare Tire Order Code: T38
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Revolutions/Mile @ 45 mph - Spare: 677
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: 1 Channel Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 232.0
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 84.1
• Overhang, Front (in): 30.1
• Overhang, Rear w/bumper (in): 63.8
• Ground to Top of Load Floor (in): 30.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Rear Door Opening Height (in): 48.3
• Rear Door Opening Width (in): 51.4
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 140.4
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Length @ Floor to Seat 4 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.3
• Cargo Box (Area) Height (in): 52.5
• Cargo Volume to Seat 1 (ft³): - TBD -
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): - TBD -
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 15
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.4
• Front Hip Room (in): 65.6
• Second Head Room (in): 40.2
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 70.5
• Second Hip Room (in): 66.5
• Third Head Room (in): 40.1
• Third Leg Room (in): 41.4
• Third Shoulder Room (in): 71.2
• Third Hip Room (in): 66.9
• Fourth Head Room (in): 39.6
• Fourth Leg Room (in): 40.8
• Fourth Shoulder Room (in): 69.6
• Fourth Hip Room (in): 66.2
• Fifth Head Room (in): 38.0
• Fifth Leg Room (in): 38.5
• Fifth Shoulder Room (in): 68.1
• Fifth Hip Room (in): 66.0
• Summary

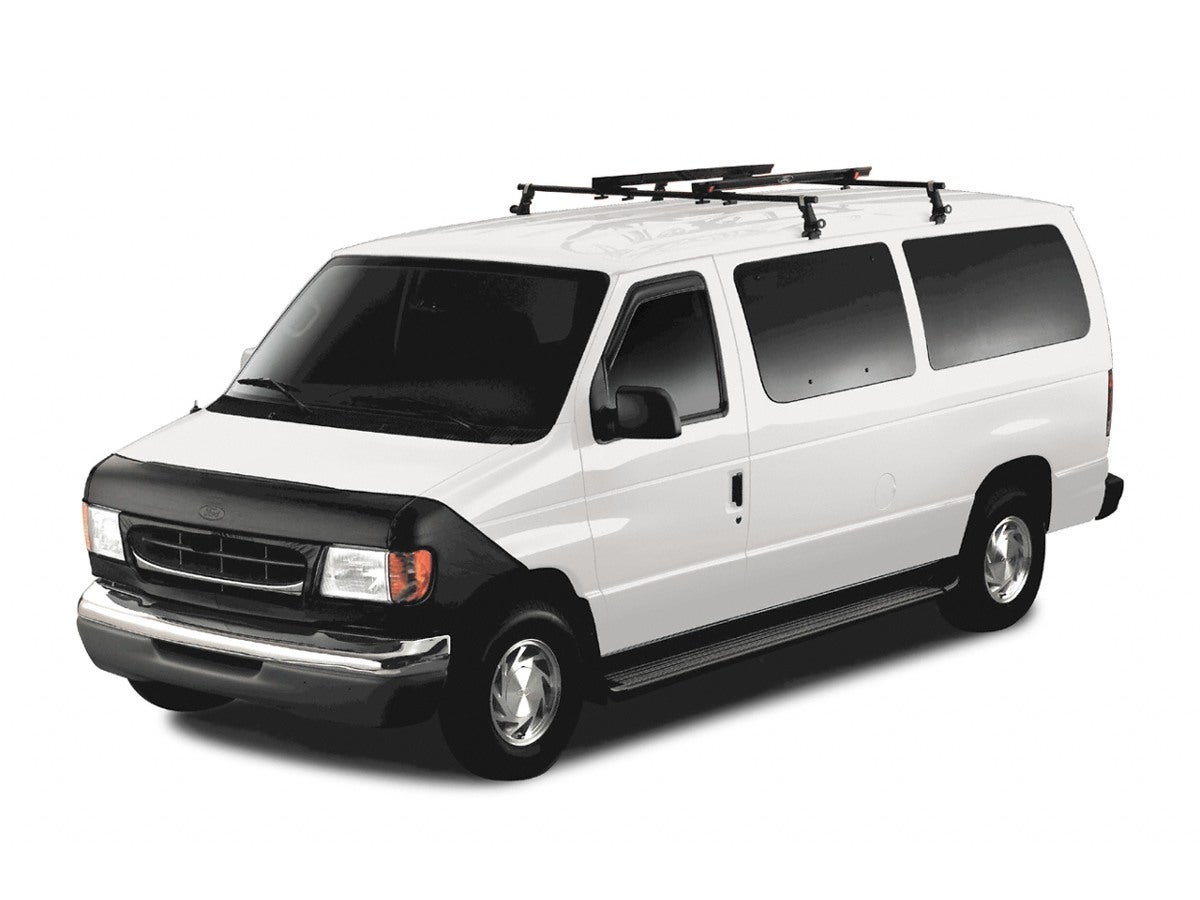

• Vehicle Name: Ford Econoline Wagon
• Body Style: Ext Passenger Van
• Body Code: 138.0" WB
